Panoramic glass cabin
Optional full-height observation glazing turns the lift into an architectural feature of the home.
Highlights
Why owners choose the Youjia G2
Larger cabin, higher load
A 400 kg rated load comfortably carries a family, a wheelchair with companion, or bulky items between floors.
Intelligent control
IoT-ready controller supports remote diagnostics, floor-call from smartphone and predictive maintenance alerts.
Diversified cabin styles
A wide library of decoration schemes — from minimalist to classical — matched to the owner's taste.
The Youjia G2 builds on the G1 platform with a larger cabin, a higher rated load and an optional panoramic glass enclosure. It is the choice for owners who want the lift to be a visual centrepiece as well as a mobility solution.
The G2’s IoT-enabled controller allows the FRANZ service network to monitor lift health remotely, scheduling maintenance before issues ever affect the ride.
Technical Data
Youjia G2 specifications
- Rated load
- 400 kg (4–5 persons)
- Speed
- 0.4 m/s
- Travel
- Up to 18 m (2–6 floors)
- Min. shaft size
- 1300 × 1350 mm
- Pit depth
- From 150 mm shallow pit
- Drive system
- Permanent-magnet gearless traction, steel-belt
- Door type
- Automatic center-opening, panoramic glass optional
- Power supply
- Single-phase 220 V
All figures are indicative and finalised per site conditions during the free design review.
Shaft elevation & hoistway layouts
Manual, side-opening and central-opening door plans. Shaft ring beams are added mid-storey at no more than 1500 mm spacing. Click to enlarge.

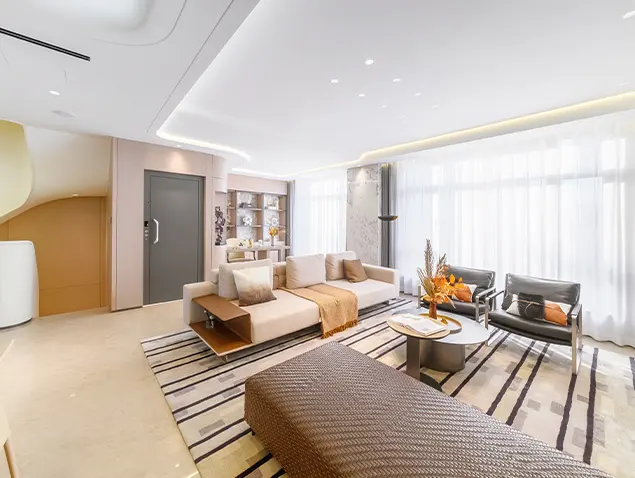

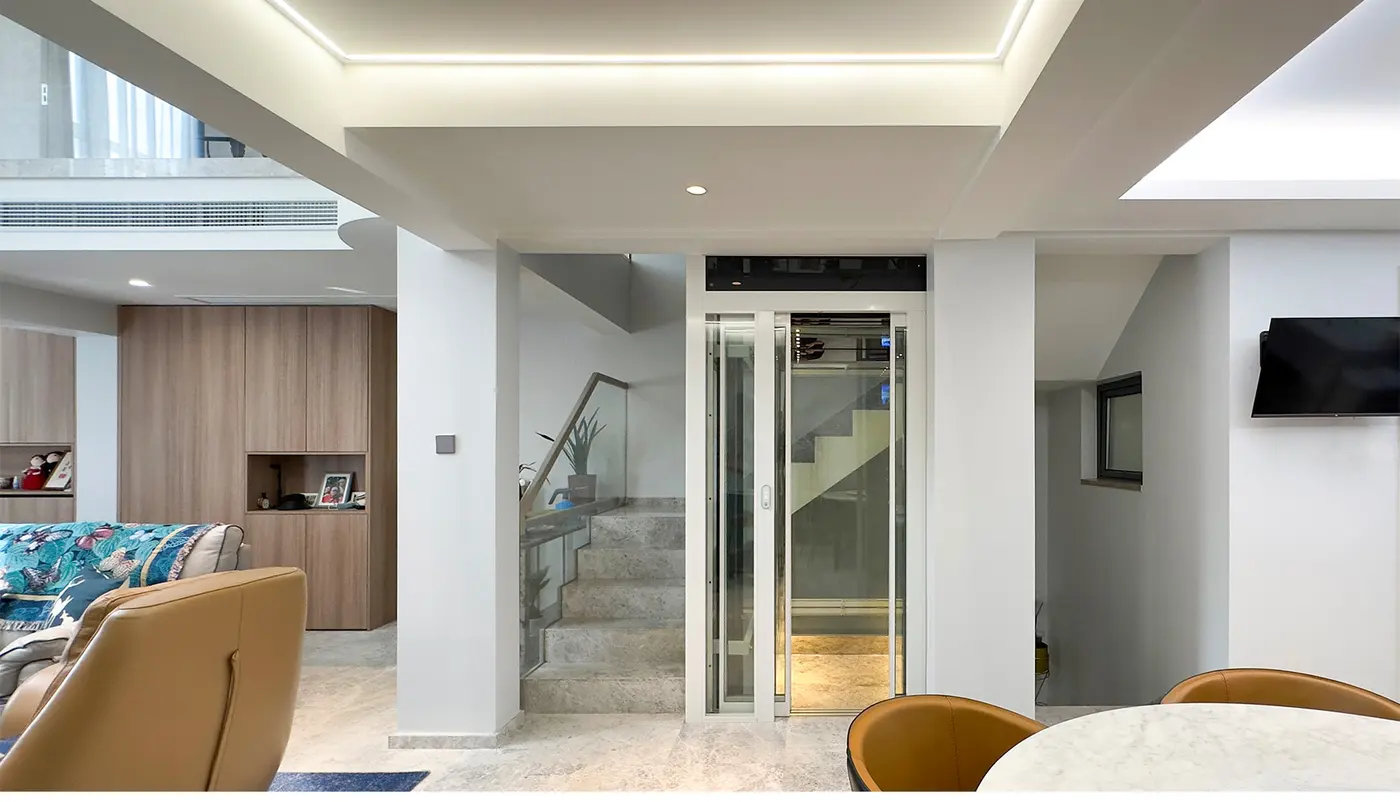

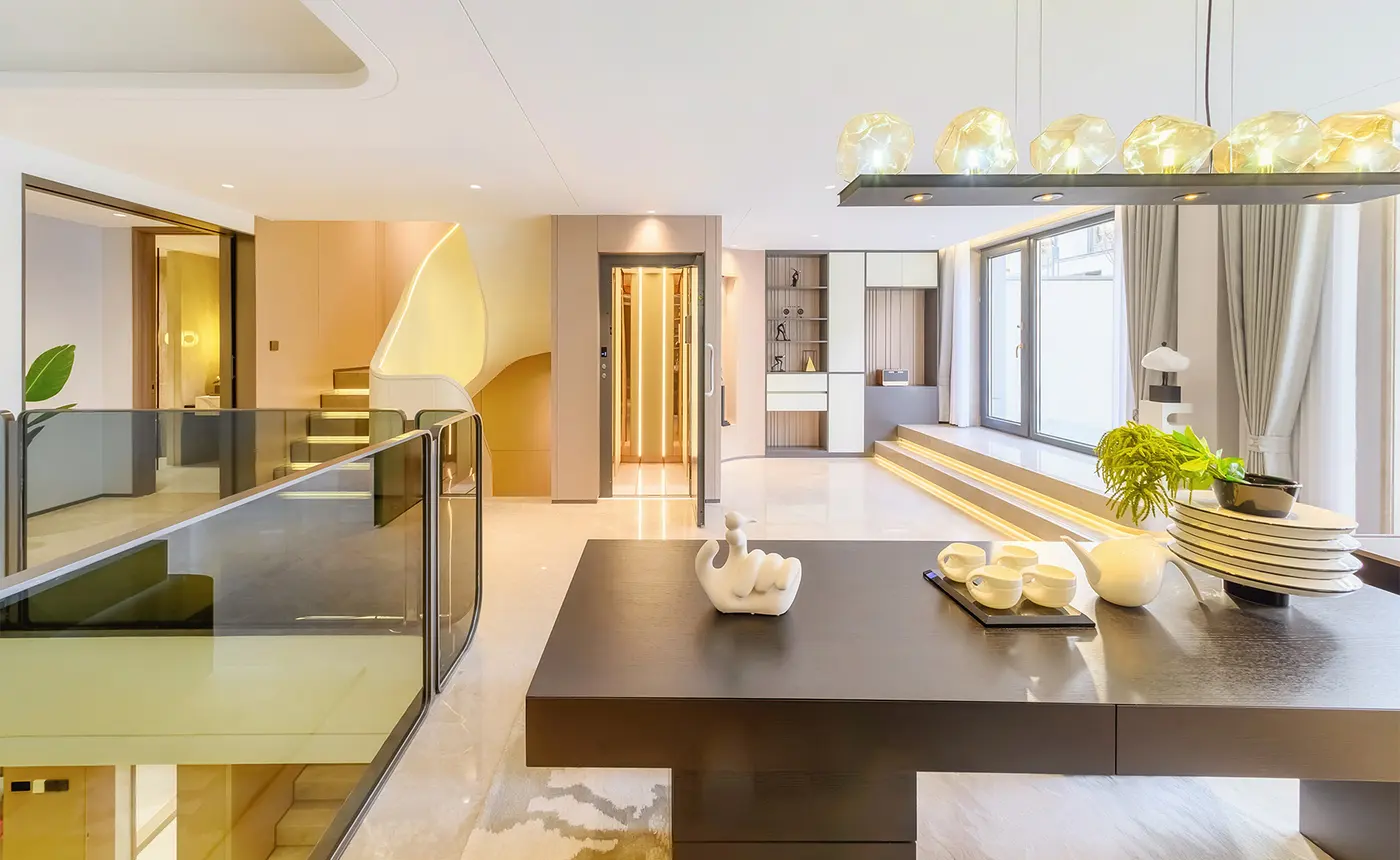

Installed
This lift in place
In real homes
Where this model is installed
All projects →Every project below was built around this lift. Open one to see the site constraints and how they were solved.
Next Step
Get a Youjia G2 proposal
Tell us your floor count and available space — we'll confirm feasibility and send an indicative quotation within one business day.
